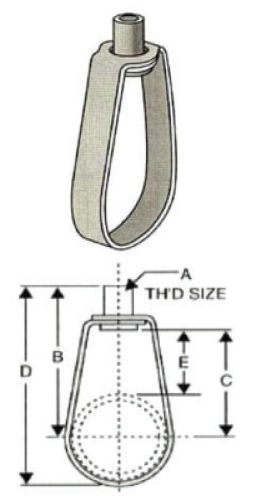

Iron Pipe Swivel Ring Hangers
Iron Pipe Swivel Ring Hanger – Pre-Galvanized | UL & FM Approved
The Iron Pipe Swivel Ring Hanger is designed for the secure suspension of non-insulated stationary pipe lines in commercial, industrial, and mechanical systems. Featuring a durable swivel ring design, this hanger allows for easy pipe alignment and vertical adjustment after installation.
Manufactured from pre-galvanized carbon steel with a zinc electroplated finish, this hanger provides corrosion resistance and long-lasting performance in demanding environments. The hanger can be installed prior to pipe erection, improving jobsite efficiency and reducing installation time.
This swivel ring hanger includes an insert nut and is compatible with reduced rod sizes in accordance with industry standards. It is UL Listed and FM Approved and complies with Federal Specification WWH-171 (Type 10), MSS SP-69 (Type 10), and NFPA requirements.
Product Specifications
Pipe Size Range:
1/2” through 2”
Material:
Pre-Galvanized Carbon Steel
Finish:
Zinc Electroplated / Pre-Galvanized
Function:
Suspension of non-insulated stationary pipe lines with vertical adjustment capability
Approvals & Compliance:
-
UL Listed
-
FM Approved
-
Federal Specification WWH-171 (Type 10)
-
MSS SP-69 (Type 10)
-
NFPA standards for reduced rod sizes
Ordering Requirements:
Specify pipe size, rod size, finish, and model number
