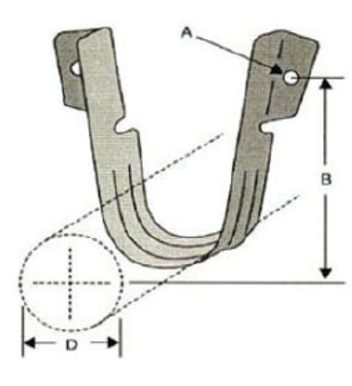

Two-Hole 90 Degree Side Mount Strap

CPVC Two-Hole 90 Degree Side Mount Strap – Pre-Galvanized | UL Approved

The CPVC Two-Hole 90 Degree Side Mount Strap is designed for the secure support and restraint of CPVC piping, especially in fire protection and plumbing applications where lateral mounting is required.

Manufactured from pre-galvanized carbon steel G-90 with a pre-galvanized finish, this strap provides durable support while meeting UL approval requirements for CPVC piping. Its 90-degree side mount design allows installation from either the top or bottom of a beam, offering flexibility in tight or code-driven installations.

In fire sprinkler systems, this strap also helps restrain upward movement of the sprinkler head when the system is activated, supporting proper system performance.

Product Specifications

Pipe Size Range: 3/4”–2”

Material: Pre-Galvanized Carbon Steel G-90

Finish: Pre-Galvanized

Function: Support and restraint of CPVC piping

Approvals: UL approved for CPVC piping

Installation Options:

Side-mounted to beams
Top or bottom beam installation
Designed to help restrain upward sprinkler head movement

Common Uses

The CPVC Two-Hole 90 Degree Side Mount Strap is commonly used where CPVC piping requires secure side-mounted support or restraint.

Typical Applications Include:

CPVC fire sprinkler systems
Plumbing systems using CPVC pipe
Beam-side pipe installations
Top or bottom beam mounting applications
Commercial and residential piping systems

Ideal For:

Side-mounted CPVC pipe support
Fire sprinkler installations requiring pipe restraint
Preventing upward pipe movement during system activation

Why Choose This CPVC Two-Hole 90 Degree Side Mount Strap?

Designed for Side-Mount Applications

The 90-degree configuration allows secure pipe support when top-mounting is not possible, making it ideal for beam-side installations.

UL Approved for CPVC Pipe

Specifically approved by Underwriter’s Laboratories for the support of CPVC piping, ensuring compliance in fire protection and plumbing systems.

Helps Control Sprinkler Head Movement

Designed to help restrain upward movement of the sprinkler head during system activation, adding stability to CPVC sprinkler installations.

Durable Pre-Galvanized Construction

Manufactured from G-90 pre-galvanized carbon steel, offering corrosion resistance and long service life.

Secure Two-Hole Design

The two-hole mounting pattern provides increased stability and load distribution compared to single-hole straps.
